Wire with clusters of short, sharp spikes set at short intervals along it, used to make fences or in warfare as an obstruction.

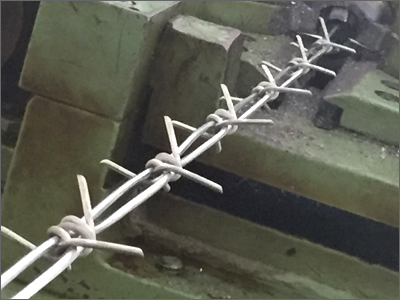

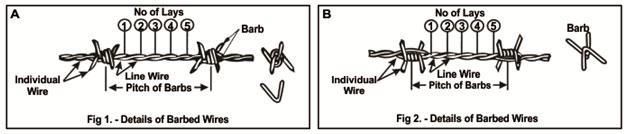

We manufactures Barbed Wire fence in various specifications. The most conventional being the double stranded line wire with the barbing wire (4 point Iowa type) at a certain pitch.
Click here for Required Material Cost
Specifications (AS PER INDIAN STANDARD)
Line Wire |
Barbing Wire |
Pitch |
|
ISI 12 Gauge (2.5mm) |
ISI 14 Gauge (2.0mm) |
75mm (3 inch) to 150mm (6 inch) |
|
All 4 End of Barb Height – 13mm (0.5 inch) to 18mm ( 0.7 inch ) |
|||
All 4 Sharp Barb Ends |
Barb Dirge – 35 or less |
No of Layer – 3 to 7 |
400 to 450 UTS |
Length |
Coil Size |
Coil Weight |
Raw Material |
Zinc coating on Barbed Wire can vary from Light, Medium and Heavy Galvanize (90 to 240 gsm).
We provide you the best range of Barbed Wires such as Barbed Wire, Barbed Wire Roll, Barbed Fencing Wire, Galvanized Barbed Wire, and Fencing Wire.
Applications :
High security areas like agriculture plot, vegetable farm, military establishments, railways, oil and gas plants, warehouse perimeter, chemical plants, etc.
